Dash sizes 3 4 5 6 6.5 8
ID in inches 3/16" ¼" 5/16" 3/8" 13/32" ½"
ID in mm 4.8 6.4 7.9 9.5 10.3 12.7
OD in mm max 13.5 16.7 18.3 20.6 21.4 23.8
Operating pressure psi. 3000 2750 2500 2250 2250 2000
Min. Bend radius mm. 90 102 114 127 140 178

Dash sizes 10 12 14 16 20 24 32
ID in inches 5/8" ¾" 7/8" 1" 1.1/4" 1.1/2" 2"
ID in mm 15.9 19.0 22.2 25.4 31.8 38.1 50.8
OD in mm max 27.0 31.0 34.1 39.2 47.6 54.0 68.3
Operating pressure psi. 1500 1250 1125 1000 625 500 375
Min. Bend radius mm. 203 241 279 305 419 508 635
Construction : Tube : Black, Oil resistant synthetic rubber
Reinforcement : Single wire braid
Cover : Black, Oil abrasion and weather ageing resistant synthetic rubber.
Application : Hydraulic, crude, fuel and lubricating oils, gasoline, water and air.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).





Dash sizes 3 4 5 6 8 10
ID in inches 3/16" ¼" 5/16" 3/8" ½" 5/8"
ID in mm 4.8 6.4 7.9 9.5 12.7 15.9
OD in mm max 16.7 18.3 19.8 22.2 25.4 28.6
Operating pressure psi. 5000 5000 4250 4000 3500 2750
Min. Bend radius mm. 90 102 114 127 178 203

Dash sizes 12 14 16 20 24 32
ID in inches ¾" 7/8" 1" 1.1/4" 1.1/2" 2"
ID in mm 19.0 22.2 25.4 31.8 38.1 50.8
OD in mm max 32.5 35.7 40.9 52.4 58.7 71.4
Operating pressure psi. 2250 2000 2000 1625 1250 1125
Min. Bend radius mm. 241 279 305 419 508 635

Construction : Tube: Black, Oil resistant synthetic rubber.
Reinforcement : Double wire braid.
Cover: Black, Oil abrasion and weather ageing resistant synthetic rubber.
Application : Hydraulic, crude, fuel and lubricating oils, gasoline.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).





Dash sizes 3 4 5 6 8 10
ID in inches 3/16" ¼" 5/16" 3/8" ½" 5/8"
ID in mm 4.8 6.4 7.9 9.5 12.7 15.9
OD in mm max 13.5 15.1 18.3 19.8 24.6 27.8
Operating pressure psi. 1500 1250 1200 1125 1000 875
Min. Bend radius mm. 76 76 102 102 127 140

Dash sizes 12 16 20 24 32
ID in inches ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 19.0 25.4 31.8 38.1 50.8
OD in mm max 32.5 39.3 44.5 50.8 66.8
Operating pressure psi. 750 565 375 250 200
Min. Bend radius mm. 152 203 254 380 508

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Double braid of suitable textile yarn.
Cover : Black, Oil and weather resistant synthetic rubber.
Application : Hydraulic oils, fuel oils anti-freeze solutions and water.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).





Dash sizes 12 16 20 24 32 40 48
ID in inches ¾" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
ID in mm 19.0 25.4 31.8 38.1 50.8 63.5 76.2
OD in mm max 34.9 41.3 50.8 57.2 69.9 82.6 95.3
Operating pressure psi. 300 250 200 150 100 62 56
Min. Bend radius mm. 127 152 203 254 305 356 457

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Consisting of braided textile fibres with a suitable spiral of body wire.
Cover : Black, Oil and weather resistant synthetic rubber.
Application : Petroleum based hydraulic oils, gasoline and fuel oils in suction lines or low pressure return lines.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).





Dash sizes 4 5 6 8 10
ID in inches 3/16" ¼" 5/16" 13/32" ½"
ID in mm 4.8 6.4 7.9 10.3 12.7
OD in mm max 13.7 15.3 17.6 20.0 24.0
Operating pressure psi. 3000 3000 2250 2000 1750
Min. Bend radius mm. 76 86 102 117 140

Dash sizes 12 16 20 24 32 40
ID in inches 5/8" 7/8" 1.1/8" 1.3/8" 1.13/16" 2.3/8"
ID in mm 15.9 22.2 28.6 34.9 46.0 60.0
OD in mm max 28.0 32.2 38.9 45.2 57.6 75.0
Operating pressure psi. 1500 800 625 500 350 350
Min. Bend radius mm. 165 187 229 267 337 500

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Single wire braid.
Cover : Closed two textile braids impregnated with an oil and mildew resistant synthetic rubber compound.
Application : Hydraulic, crude, fuel and lubricating oils, gasoline.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
Note : Operating temperature in excess of 200°F (93°C) may materially reduce the service life of hose assembly.
Max. change in length under working pressure: +2%-4%





Dash sizes 3 4 5 6 8 10
ID in inches 3/16" ¼" 5/16" 3/8" ½" 5/8"
ID in mm 4.8 6.4 7.9 9.5 12.7 15.9
OD in mm max 11.9 13.5 15.1 16.7 20.6 23.8
Operating pressure psi. 500 400 400 400 400 350
Min. Bend radius mm. 51 64 76 76 102 127

Dash sizes 12 14 16 20 24 32
ID in inches ¾" 7/8" 1" 1.1/4" 1.1/2 2"
ID in mm 19.0 22.2 25.4 31.8 38.1 50.8
OD in mm max 26.0 30.0 35.1 41.5 47.8 63.7
Operating pressure psi. 245 225 225 200 150 100
Min. Bend radius mm. 177 177 260 320 400 500

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Single braid of suitable textile yarn.
Cover : Black, Oil and weather resistant synthetic rubber.
Application : Hydraulic liquids, air, water, oils, fuel, propane and butane gas.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
Note : Operating temperature in excess of 200°F (93°C) may materially reduce the life of hose assembly.





Dash sizes 4 6 8
ID in inches ¼" 3/8" ½"
ID in mm 6.4 9.5 12.7
OD in mm max 13.0 17.8 21.8
Operating pressure psi. 2750 2250 2000
Min. Bend radius mm. 102 127 178

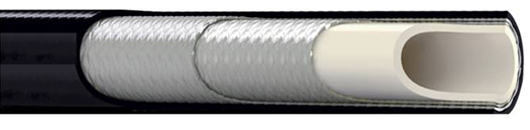

Construction : Tube : Polyester.
Reinforcement : Polyester yarn.
Cover : Polyurethane.
Application : Hydraulic, crude, fuel and lubricating oils, gasoline.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
Note : Operating temperature in excess of 200°F (93°C) may materially reduce the service life of hose assembly.
Max. change in length under working pressure: +3%-3%.





Dash sizes 4 6 8
ID in inches ¼" 3/8" ½"
ID in mm 6.4 9.5 12.7
OD in mm max 16.8 20.3 24.6
Operating pressure psi. 5000 4000 3500
Min. Bend radius mm. 102 127 178

Construction : Tube : Nylon.
Reinforcement : Polyester yarn.
Cover : Polyurethane.
Application : Hydraulic, crude, fuel and lubricating oils, gasoline.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
Note : Operating temperature in excess of 200°F (93°C) may materially reduce the service life of hose assembly.
Max. change in length under working pressure: +3%-3%.





Dash sizes 6 8 12 16 20 24 32
ID in inches 3/8" ½" ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 9.5 12.7 19.0 25.4 31.8 38.1 50.8
OD in mm max 22.2 25.4 32.2 40.9 52.4 58.7 73.0
Operating pressure psi. 4500 4000 3000 3000 2500 2000 2000
Min. Bend radius mm. 127 178 241 305 419 508 660

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Four spiral piles of wire wrapped in alternating directions.
Cover : Resistant to weather, oils and abrasion synthetic rubber.
Application : High pressure Hydraulic service petroleum based hydraulic liquids, water, diesel, fuel and lubricating oils
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).





Dash sizes 3 4 6 8 12
ID in inches 3/16" ¼" 3/8" ½" ¾"
ID in mm 4.8 6.4 9.5 12.7 19.0
OD in mm max 19.8 21.4 24.6 28.6 37.3
Operating pressure psi. 10000 8750 7500 6250 5000
Min. Bend radius mm. 102 127 152 203 279

Dash sizes 16 20 24 32
ID in inches 1" 1.1/4" 1.1/2" 2"
ID in mm 25.4 31.8 38.1 50.8
OD in mm max 45.6 52.4 58.7 72.2
Operating pressure psi. 4000 3000 2500 2500
Min. Bend radius mm. 356 457 559 711

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Four spiral heavy duty piles of high tensile steel wire wrapped in alternating directions.
Cover : Resistant to weather, oils and abrasion synthetic rubber.
Application : Extra high pressure Hydraulic service petroleum based hydraulic liquids, water, diesel, fuel and lubricating oils.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
Note : Operating temperature in excess of 200°F (93°C) may materially reduce the service life of hose assembly.
Max. change in length under working pressure: +2%-4%.




Dash sizes 6 8 12 16 20 24 32
ID in inches 3/8" ½" ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 9.5 12.7 19.0 25.4 31.8 38.1 50.8
OD in mm max 27.8 31.8 40.5 49.6 56.4 62.7 77.0
Operating pressure psi. 10000 7500 6250 5000 3500 3000 3000
Min. Bend radius mm. 152 203 279 356 457 559 711

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : 6 high tensile wire spirals wrapped in alternating directions.
Cover : Black, Oil resistant synthetic rubber.
Temperature : -40°C to +121°C.




Dash sizes 6 8 12 16 20 24 32
ID in inches 3/8" ½" ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 9.5 12.7 19.0 25.4 31.8 38.1 50.8
OD in mm max 20.0 23.8 30.7 38.0 47.0 53.5 66.7
Operating pressure psi. 4000 4000 4000 4000 3000 2500 2500
Min. Bend radius mm. 127 178 240 300 419 500 630

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : 4 high tensile wire spirals.
Cover : Black, Oil resistant synthetic rubber.
Temperature : -40°C to +121°C.




Dash sizes 4 6 8 12 16 *20 *24 *32
ID in inches ¼" 3/8" ½" ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 6.3 9.5 12.7 19.0 25.4 31.8 38.1 50.8
OD in mm max 20.4 23.8 27.0 32.0 39.2 49.8 57.3 71.0
Operating pressure psi. 11250 10000 7500 5000 5000 5000 5000 5000
Min. Bend radius mm. 127 152 200 240 300 419 500 630

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : 4-6 high tensile wire spirals *6-Spirals.
Cover : Black, Oil resistant synthetic rubber.
Temperature : -40°C to +121°C.




Dash sizes 20 25 32 40 50
ID in inches ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 19.0 25.4 31.8 38.1 50.8
OD in mm max 32.0 38.0 45.2 53.5 68.0
Operating pressure psi. 6090 5510 4715 4205 3625
Min. Bend radius mm. 280 340 460 560 700

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : 4 high tensile wire spirals.
Cover : Black, Oil resistant synthetic rubber.
Temperature : -40°C to +121°C.




Dash sizes 6 10 12 16 20
ID in inches ¼" 3/8" ½" 5/8" ¾"
ID in mm 6.4 9.5 12.7 15.9 19.0
OD in mm max 17.8 21.4 24.6 28.5 32.0
Operating pressure psi. 6525 6450 6020 5075 5075
Min. Bend radius mm. 150 178 230 250 300

Dash sizes 25 32 40 50
ID in inches 1" 1.1/4" 1.1/2" 2"
ID in mm 25.4 31.8 38.1 50.8
OD in mm max 39.7 50.8 57.0 70.6
Operating pressure psi. 4060 3045 2680 2500
Min. Bend radius mm. 340 457 559 660

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : 4 high tensile wire spirals.
Cover : Black, Oil resistant synthetic rubber.
Temperature : -40°C to +121°C.




Dash sizes 6 8 10 12 16
ID in inches 3/8" ½" 5/8" ¾" 1"
ID in mm 9.5 12.7 15.9 19.0 25.4
OD in mm max 21.4 24.6 27.8 31.9 39.8
Operating pressure psi. 5000 5000 4250 3750 3000
Min. Bend radius mm. 130 150 190 230 300

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Double braid of high tensile wire.
Cover : Black, Oil and weather resistant synthetic rubber.
Application : Hydraulic liquids, air, water, oils, fuel, propane and butane gas.
Temperature : -40 Deg C to +93 Deg C




Dash sizes 3 4 5 6 8
ID in inches 3/16" ¼" 5/16" 3/8" ½"
ID in mm 4.8 6.4 7.9 9.5 12.7
OD in mm max 16.1 17.9 20.2 22.5 25.8
Operating pressure psi. 6250 6250 5500 5250 4750
Min. Bend radius mm. 127 127 140 152 203

Dash sizes 10 12 16 20 24 32
ID in inches 5/8" ¾" 1" 1.1/4" 1.1/2" 2"
ID in mm 15.9 19.0 25.4 31.8 38.1 50.8
OD in mm max 29.5 34.0 41.5 50.8 57.8 70.7
Operating pressure psi. 4250 3500 3200 2500 2000 2000
Min. Bend radius mm. 254 280 330 432 533 673

Construction : Tube : Black, Oil resistant synthetic rubber.
Reinforcement : Three high tensile steel wire wrapped braiding.
Cover : Black, oil and weather resistant synthetic rubber.
Application : Extra high pressure Hydraulic oil, fuel lubricating oil, water & air.
Temperature : -40°C to +93°C (-40°F to +200°F). (Intermittent +120°C).
